要说 MySQL 同步到Oracle的工具，除了传统的 OGG，应该考虑的就是 ST（） 了吧，简直太好用啦 ~

当前生产已稳定运行 4 个月，源端 3 个库，完美支持！推荐给大家试试~

1. SeaTunnel怎么用？来看看帮助信息

./bin/seatunnel.sh -hUsage: seatunnel.sh [options]  Options:    --async                         Run the job asynchronously, when the job                                     is submitted, the client will exit                                    (default: false)    -can, --cancel-job              Cancel job by JobId    --check                         Whether check config (default: false)    -cj, --close-job                Close client the task will also be closed                                     (default: true)    -cn, --cluster                  The name of cluster    -c, --config                    Config file    --decrypt                       Decrypt config file, When both --decrypt                                     and --encrypt are specified, only                                     --encrypt will take effect (default: false)     -m, --master, -e, --deploy-mode SeaTunnel job submit master, support                                     [local, cluster] (default: cluster)    --encrypt                       Encrypt config file, when both --decrypt                                     and --encrypt are specified, only                                     --encrypt will take effect (default: false)     --get_running_job_metrics       Gets metrics for running jobs (default: false)     -h, --help                      Show the usage message    -j, --job-id                    Get job status by JobId    -l, --list                      list job status (default: false)    --metrics                       Get job metrics by JobId    -n, --name                      SeaTunnel job name (default: SeaTunnel)    -r, --restore                   restore with savepoint by jobId    -s, --savepoint                 savepoint job by jobId    --set-job-id                    Set custom job id for job    -i, --variable                  Variable substitution, such as -i                                     city=beijing, or -i date=20190318.We use ',' as separator, when inside "", ',' are                                     treated as normal characters instead of                                     delimiters. For example, -i                                     city="beijing,shanghai". If you want to                                     use dynamic parameters, you can use the                                     following format: -i date=$(date                                     +"%Y%m%d"). (default: [])

参考说明：

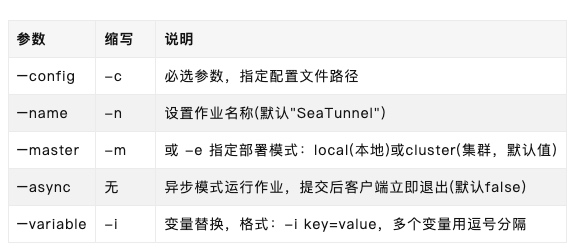

1）作业提交相关参数

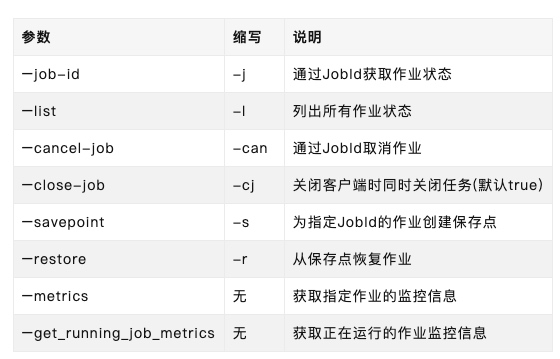

2）作业管理相关参数

2. 怎么安装，可以参考之前文章

【数据同步】SeaTunnel初体验，5000字深入浅出带你用上Oracle-CDC

3. 日常运维之任务管理

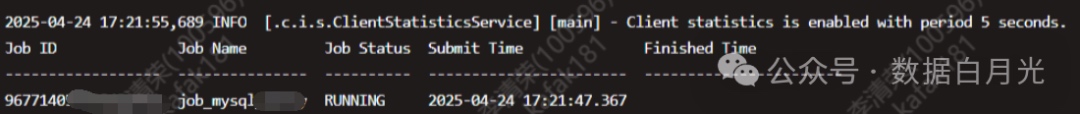

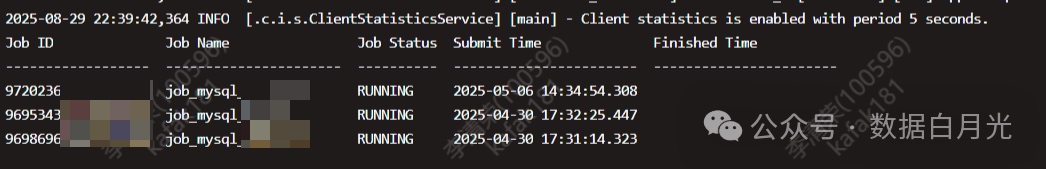

3.1 查看任务：running 表示正在运行的，当然也会看到其他的状态

./bin/seatunnel.sh -l

3.2 暂停任务

./bin/seatunnel.sh -s 967714059992432641

3.3 再次启动已暂停的任务

./bin/seatunnel.sh -r 967714059992432641 -c $SEATUNNEL_HOME/config/mysql_virdb_config

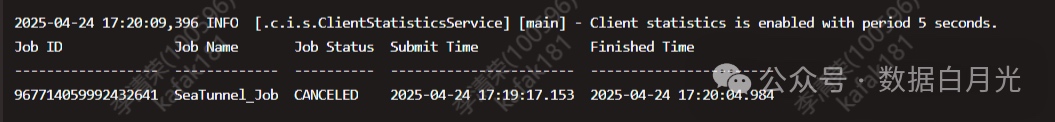

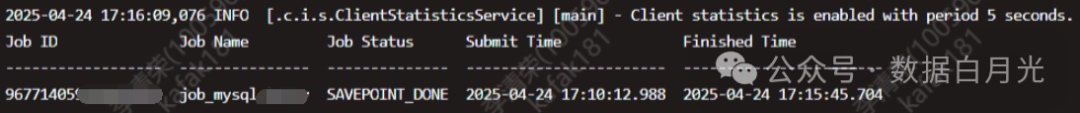

由于恢复的时候未加入后台运行，导致一直前端，直接ctrl+c 退出后，状态为

PS： 故恢复时候，一定要加入相关的参数，job命名，是否后台运行等

./bin/seatunnel.sh -r 967714059992432641 -c $SEATUNNEL_HOME/config/mysql_virdb_config --async -n job_mysql_virdb

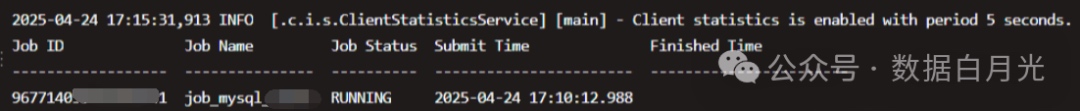

再次查看作业状态，这就是我们期待的样子

3.4 取消任务

该命令会取消指定作业，取消作业后，作业会被停止，作业的状态会变为CANCELED。

支持批量取消作业，可以一次取消多个作业。

被cancel的作业的所有断点信息都将被删除，无法通过seatunnel.sh -r 恢复。

./bin/seatunnel.sh -can 967714059992432641

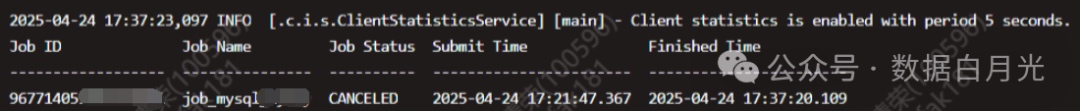

PS： 取消后的状态，与直接ctrl+c 退出后竟然的相识，若再启动应该会丢了一部分数据吧

4. SeaTunnel 日志配置

配置文件：$SEATUNNEL_HOME/config/log4j2.properties

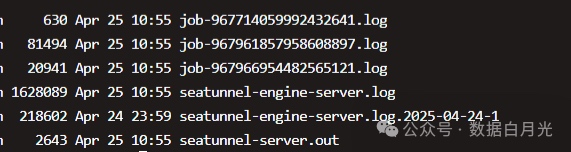

4.1 为每个作业单独配置日志文件(重启其中一个job后生效)

如下配置

rootLogger.appenderRef.file.ref = fileAppenderappender.file.layout.pattern = [%X{ST-JID}] %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p [%-30.30c{1.}] [%t] - %m%n

更改为如下:

rootLogger.appenderRef.file.ref = routingAppenderappender.file.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p [%-30.30c{1.}] [%t] - %m%n

4.2 SeaTunnel 支持定时删除旧日志文件，以避免磁盘空间不足

您可以在 $SEATUNNEL_HOME/config/seatunnel.yaml 配置文件中添加以下配置：
默认配置项如下(时间按分钟计算，比如1440为1440分钟)

seatunnel:engine:history-job-expire-minutes:1440telemetry:logs:scheduled-deletion-enable:true

说明：

• history-job-expire-minutes: 设置历史作业和日志的保留时间（单位：分钟）。系统将在指定的时间后自动清除过期的作业信息和日志文件。

• scheduled-deletion-enable: 启用定时清理功能，默认为 true。系统将在作业达到 history-job-expire-minutes 设置的过期时间后自动删除相关日志文件。关闭该功能后，日志将永久保留在磁盘上，需要用户自行管理，否则可能影响磁盘占用。建议根据需求合理配置。

5. Web UI 查看任务情况

ps:终于等到了，居然有 Web UI界面监控作业情况了，太棒了吧！！！来来来，看下如何配置及访问

5.1 配置Web UI

配置文件：$SEATUNNEL_HOME/config/seatunnel.yaml，默认配置如下

seatunnel:engine:http:enable-http:trueport:8080

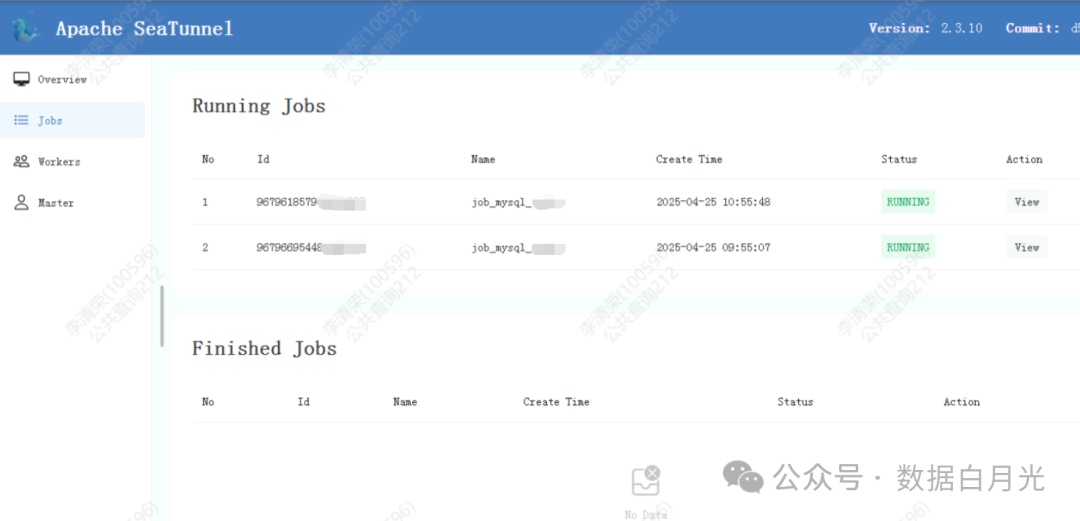

5.2 访问Web UI 页面

打开浏览器，访问 http://ip:8080 即可

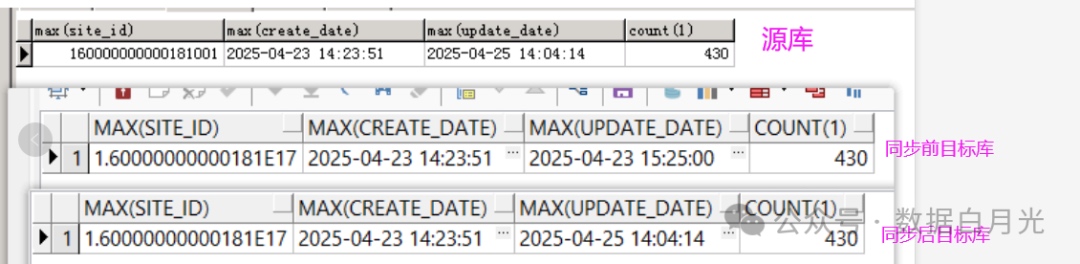

5.3 同步数据比对

通过最新创建时间及更新时间，以及行数进行比对。

6 常见错误

6.1 必须配置数据库名及表名，不然会报错

2025-04-24 17:59:42,640 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Fatal Error, 2025-04-24 17:59:42,641 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Please submit bug report in https://github.com/apache/seatunnel/issues2025-04-24 17:59:42,641 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Reason:SeaTunnel job executed failed 2025-04-24 17:59:42,642 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Exception StackTrace:org.apache.seatunnel.core.starter.exception.CommandExecuteException: SeaTunnel job executed failed        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:228)        at org.apache.seatunnel.core.starter.SeaTunnel.run(SeaTunnel.java:40)        at org.apache.seatunnel.core.starter.seatunnel.SeaTunnelClient.main(SeaTunnelClient.java:34)Caused by: org.apache.seatunnel.api.table.factory.FactoryException: ErrorCode:[API-06], ErrorDescription:[Factory initialize failed] - Unable to create a sink for identifier 'jdbc'.        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:250)        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.createSinkAction(MultipleTableJobConfigParser.java:669)        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parseSink(MultipleTableJobConfigParser.java:592)        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parse(MultipleTableJobConfigParser.java:240)        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.getLogicalDag(ClientJobExecutionEnvironment.java:123)        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.execute(ClientJobExecutionEnvironment.java:191)        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:165)        ... 2 moreCaused by: org.apache.seatunnel.api.configuration.util.OptionValidationException: ErrorCode:[API-02], ErrorDescription:[Option item validate failed] - There are unconfigured options, the options('database') are required because ['generate_sink_sql' == true] is true.        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:200)        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:107)        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:47)        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:239)        ... 8 more2025-04-24 17:59:42,642 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - ===============================================================================Exception in thread "main" org.apache.seatunnel.core.starter.exception.CommandExecuteException: SeaTunnel job executed failed        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:228)        at org.apache.seatunnel.core.starter.SeaTunnel.run(SeaTunnel.java:40)        at org.apache.seatunnel.core.starter.seatunnel.SeaTunnelClient.main(SeaTunnelClient.java:34)Caused by: org.apache.seatunnel.api.table.factory.FactoryException: ErrorCode:[API-06], ErrorDescription:[Factory initialize failed] - Unable to create a sink for identifier 'jdbc'.        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:250)        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.createSinkAction(MultipleTableJobConfigParser.java:669)        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parseSink(MultipleTableJobConfigParser.java:592)        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parse(MultipleTableJobConfigParser.java:240)        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.getLogicalDag(ClientJobExecutionEnvironment.java:123)        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.execute(ClientJobExecutionEnvironment.java:191)        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:165)        ... 2 moreCaused by: org.apache.seatunnel.api.configuration.util.OptionValidationException: ErrorCode:[API-02], ErrorDescription:[Option item validate failed] - There are unconfigured options, the options('database') are required because ['generate_sink_sql' == true] is true.        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:200)        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:107)        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:47)        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:239)        ... 8 more

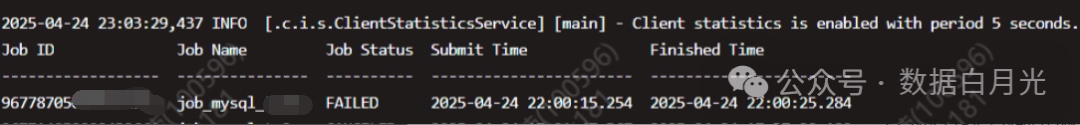

6.2 报错2，ID问题

[967787050499571713] 2025-04-24 22:00:16,190 ERROR [.s.e.s.c.CheckpointCoordinator] [hz.main.generic-operation.thread-14] - report error from taskorg.apache.seatunnel.common.utils.SeaTunnelException: java.lang.IllegalArgumentException: can't find field [ID]        at org.apache.seatunnel.api.table.type.SeaTunnelRowType.indexOf(SeaTunnelRowType.java:87)        at org.apache.seatunnel.api.table.type.SeaTunnelRowType.indexOf(SeaTunnelRowType.java:77)        at org.apache.seatunnel.connectors.seatunnel.jdbc.sink.JdbcSink.createWriter(JdbcSink.java:133)        at org.apache.seatunnel.connectors.seatunnel.jdbc.sink.JdbcSink.createWriter(JdbcSink.java:66)        at org.apache.seatunnel.api.sink.multitablesink.MultiTableSink.createWriter(MultiTableSink.java:82)        at org.apache.seatunnel.engine.server.task.flow.SinkFlowLifeCycle.restoreState(SinkFlowLifeCycle.java:342)        at org.apache.seatunnel.engine.server.task.SeaTunnelTask.lambda$restoreState$16(SeaTunnelTask.java:426)        at java.util.stream.ForEachOps$ForEachOp$OfRef.accept(ForEachOps.java:184)        at java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:193)        at java.util.stream.ReferencePipeline$2$1.accept(ReferencePipeline.java:175)        at java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1384)        at java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:482)        at java.util.stream.AbstractPipeline.wrapAndCopyInto(AbstractPipeline.java:472)        at java.util.stream.ForEachOps$ForEachOp.evaluateSequential(ForEachOps.java:151)        at java.util.stream.ForEachOps$ForEachOp$OfRef.evaluateSequential(ForEachOps.java:174)        at java.util.stream.AbstractPipeline.evaluate(AbstractPipeline.java:234)        at java.util.stream.ReferencePipeline.forEach(ReferencePipeline.java:418)        at org.apache.seatunnel.engine.server.task.SeaTunnelTask.restoreState(SeaTunnelTask.java:423)        at org.apache.seatunnel.engine.server.checkpoint.operation.NotifyTaskRestoreOperation.lambda$runInternal$0(NotifyTaskRestoreOperation.java:107)        at java.util.concurrent.CompletableFuture$AsyncRun.run(CompletableFuture.java:1640)        at org.apache.seatunnel.api.tracing.MDCRunnable.run(MDCRunnable.java:43)        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)        at java.lang.Thread.run(Thread.java:750)        at org.apache.seatunnel.engine.server.checkpoint.CheckpointCoordinator.reportCheckpointErrorFromTask(CheckpointCoordinator.java:391) ~[seatunnel-starter.jar:2.3.10]        at org.apache.seatunnel.engine.server.checkpoint.CheckpointManager.reportCheckpointErrorFromTask(CheckpointManager.java:182) ~[seatunnel-starter.jar:2.3.10]        at org.apache.seatunnel.engine.server.checkpoint.operation.CheckpointErrorReportOperation.runInternal(CheckpointErrorReportOperation.java:48) ~[seatunnel-starter.jar:2.3.10]        at org.apache.seatunnel.engine.server.task.operation.TracingOperation.run(TracingOperation.java:42) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.spi.impl.operationservice.Operation.call(Operation.java:189) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.spi.impl.operationservice.impl.OperationRunnerImpl.call(OperationRunnerImpl.java:273) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.spi.impl.operationservice.impl.OperationRunnerImpl.run(OperationRunnerImpl.java:248) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.spi.impl.operationservice.impl.OperationRunnerImpl.run(OperationRunnerImpl.java:213) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.spi.impl.operationexecutor.impl.OperationThread.process(OperationThread.java:175) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.spi.impl.operationexecutor.impl.OperationThread.process(OperationThread.java:139) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.spi.impl.operationexecutor.impl.OperationThread.executeRun(OperationThread.java:123) ~[seatunnel-starter.jar:2.3.10]        at com.hazelcast.internal.util.executor.HazelcastManagedThread.run(HazelcastManagedThread.java:102) ~[seatunnel-starter.jar:2.3.10]

6.3 已存在会提示

Error Msg = ORA-00955: name is already used by an existing object        at oracle.jdbc.driver.T4CTTIoer11.processError(T4CTTIoer11.java:530)        ... 43 more        at org.apache.seatunnel.engine.server.CoordinatorService.lambda$submitJob$6(CoordinatorService.java:656)        at org.apache.seatunnel.api.tracing.MDCRunnable.run(MDCRunnable.java:43)        at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)        at java.util.concurrent.FutureTask.run(FutureTask.java:266)        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)        at java.lang.Thread.run(Thread.java:750)

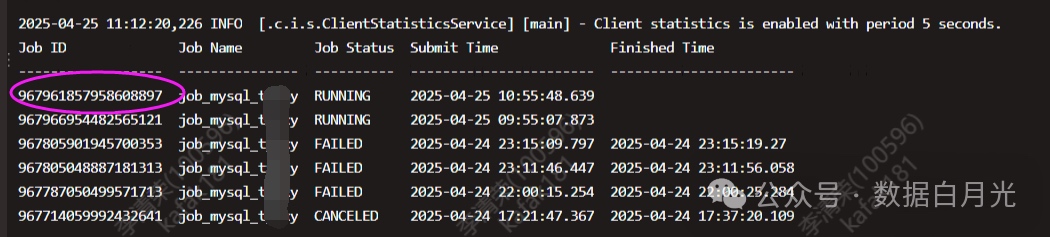

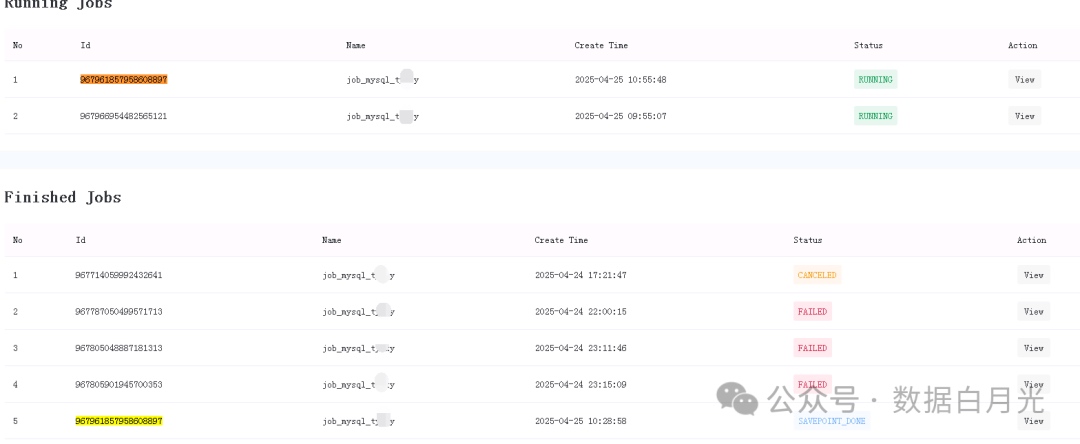

Web UI的任务展示与服务器查询有不一致的地方

jobid：967961857958608897 之前暂停过，再启动后，在web ui存在2条记录

6.4 可能是数据延迟导致，过几天再看的，已经没有

7. 参考文档

• 下载地址
  https://seatunnel.apache.org/download/

• source 源端 mysql-cdc配置
  https://seatunnel.apache.org/zh-CN/docs/2.3.10/connector-v2/source/MySQL-CDC

• sink 目标端 oracle 配置
  https://seatunnel.apache.org/zh-CN/docs/2.3.10/connector-v2/sink/Oracle

• 为每个作业配置单独的配置项
  https://seatunnel.apache.org/zh-CN/docs/2.3.10/seatunnel-engine/logging
